About the contexts of notification messages
The following information corresponds to object IDs (OIDs) *.21359.2.491.10.1 to *.21359.2.491.10.14.
Notifications contain the following information:
Alert Name
Name of the alert profile that generated the alert.
Alert Description
User-specified description of the alert.
Alert Source
Riverbed product from which the notification originated (NetIM).
sysName
The hostname of the device that caused the alert.
Metric Class
The category of the metric.
Metric
The specific metric involved.
Metric Index
Information that helps identify the metric.
Crossed At
The time the threshold was crossed.
Initially Crossed At
The time the threshold was initially crossed. This field is displayed when the statistic crosses back below the threshold.
Threshold
The threshold that was crossed.
Observed
The observed statistic that crossed the threshold.
Complete Sample
Varies based on metric class.
SNMP Trap notification example
To find the latest SNMP Trap MIB definition, go to <install-dir>/lib/mibs/third_party/opnet.
This example is the result of a CPU Utilization alert shown in a trap receiver with the SNMP Trap MIB definition loaded.
.iso.org.dod.internet.mgmt.mib-2.system.sysUpTime.0:TimeTicks:0 hours, 33 minutes, 2 seconds.:
.iso.org.dod.internet.6.3.1.1.4.1.0:Object ID:.1.3.6.1.4.1.21359.2.1.491.0.2:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentOperator.1:5:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSeverity:minor:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertDesc:CPU Util Over 5 Minutes:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertProfileName:CPU Util:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertName:CPU Util:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentCriticalThreshold.1:75:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetProfileId:1:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentStateID.1:1:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertId:1:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentMajorThreshold.1:50:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentMetricValue.1:41:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetSysName:NYCCSBSW01.opnet.com:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricName.1:cpuIndex:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDescription.2:User friendly name of CPU:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricName.3:cpuUtilType:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDescription.1:The physical index of the CPU:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricName.2:cpuName:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricName.4:cpuUtil:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricIsIndex.2:2:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDisplayName.3:Object Identifier:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricIsIndex.1:1:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDisplayName.2:Name of CPU:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentStartTime.1:131532909678:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDisplayName.1:CPU Index Number:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricIsIndex.4:2:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricIsIndex.3:1:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetTargetInfo.opnetTargetDeviceID:906:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricClassName.3:CPU_UTIL:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentMetricClassName.1:CPU_UTIL:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricClassName.4:CPU_UTIL:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentStopTime.1:0:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricClassName.1:CPU_UTIL:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricClassName.2:CPU_UTIL:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetSampleDataIndex.1:1:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetSampleDataIndex.2:2:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetSampleDataIndex.3:3:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentID.1:1:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetSampleDataIndex.4:4:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentMetricName.1:cpuUtil5min:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricUnits.4:%:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetPrimaryAddress:10.3.1.115:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetSampleMetricValue.1:0:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetSampleMetricValue.4:41:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetSource:Net:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetSampleMetricValue.3:cpmCPUTotal5minRev:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentMinorThreshold.1:25:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDescription.3:Where appropriate, this will be the name of the requested CPU utilization type.:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDescription.4:Percent utilization as received from the device:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentMetricDisplayName.1:CPU Utilization 5 min:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetTargetInfo.opnetTargetInfoOeID:670004:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetTargetInfo.opnetTargetInfoMetricClassName:CPU_UTIL:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetTargetInfo.opnetTargetInfoMetricClassDisplayName:CPU Utilization:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetAlertSampleData.opnetSampleDataTable.opnetSampleDataEntry.opnetMetricDisplayName.4:CPU Utilization:
.iso.org.dod.internet.private.enterprises.opnettechnologies.opnetMib.opnetGenericInfo.opnetGenericTrapVars.opnetComponentInfo.opnetAlertComponentTable.opnetAlertComponentEntry.opnetAlertComponentMetricClassDisplayName.1:CPU Utilization:
Syslog notification example
CRITICAL - The following alert has been crossed with critical severity: Alert Name: CPU Alert > 50%
Alert Description: trap
Alert Source: Riverbed NetIM
sysName:WDCCSDST01.lab.opnet.com
primaryAddress:10.1.128.2
The following alert details were observed:
Metric Class: CPU Utilization
Metric:CPU Utilization 5 min
Metric Index: cpuIndex: 0, cpuUtilType: cpmCPUTotal5minRev
Crossed at: Mon Apr 11 14:55:10 EDT 2011
Threshold: > 50%
Observed: 58%
Complete Sample:
CPU Index Number: 0
Name of CPU:
Object Identifier: cpmCPUTotal5minRev
CPU Utilization: 58
E-Mail notification example
The following alert has been crossed with minor severity:
Alert Name: Alert 1
Alert Description:
Alert Source: Riverbed NetIM
sysName:ATLCSACC01.lab.opnet.com
primaryAddress:10.1.18.9
The following alert details were observed:
Metric Class: IP SLA Latency
Metric: Roundtrip Latency
Metric Index: targetIP: 10.2.8.9, protocol: ipIcmpEcho
Crossed at: Thu Apr 07 14:18:50 EDT 2011
Threshold: > 100 milliseconds
Observed: 191 milliseconds
Complete Sample:
Target Address: 10.2.8.9
Protocol: ipIcmpEcho
Roundtrip Latency: 191
Minimum Roundtrip Latency:
Maximum Roundtrip Latency:
Suppression notification example
Alert suppression helps reduce the number of notifications by filtering out the less important messages. When notification suppression is enabled, the initial notification will indicate that suppression is active. No additional notifications for that alert will be sent. See
Configuring alert suppression for more information.

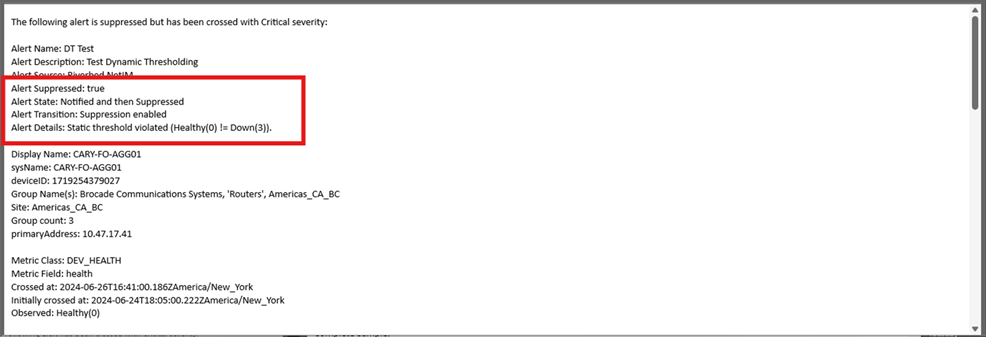

Notification messages contain information about the suppression status for the alert, along with the alert's current state and its most-recent transition.
Suppression notification
